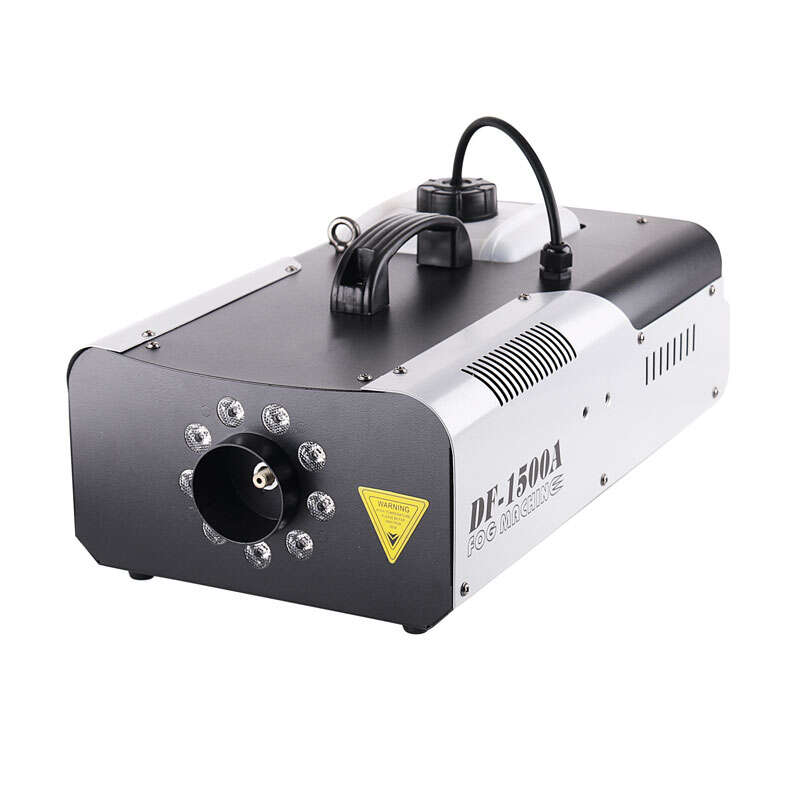

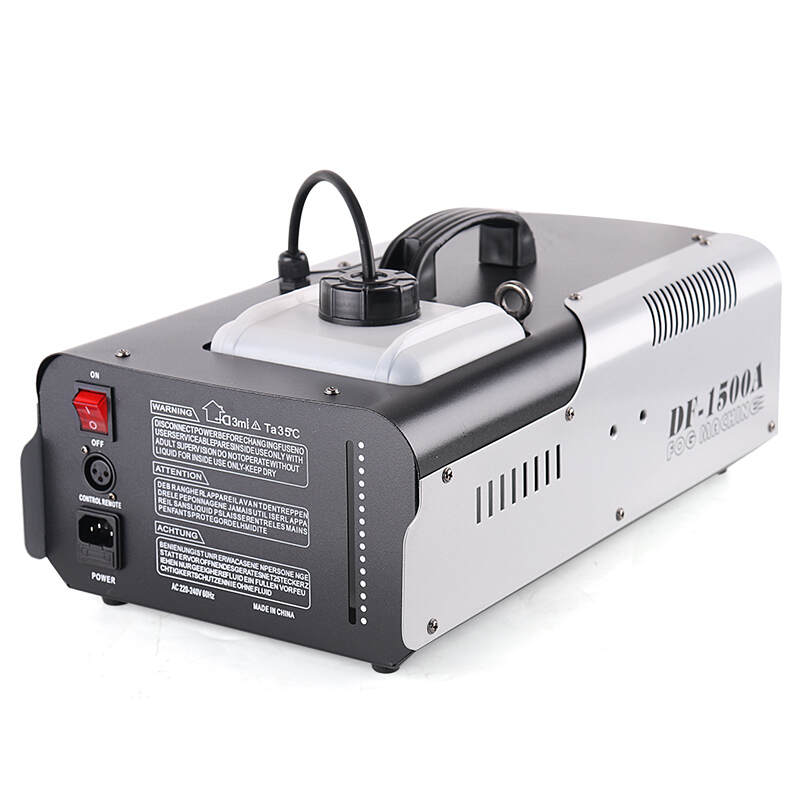

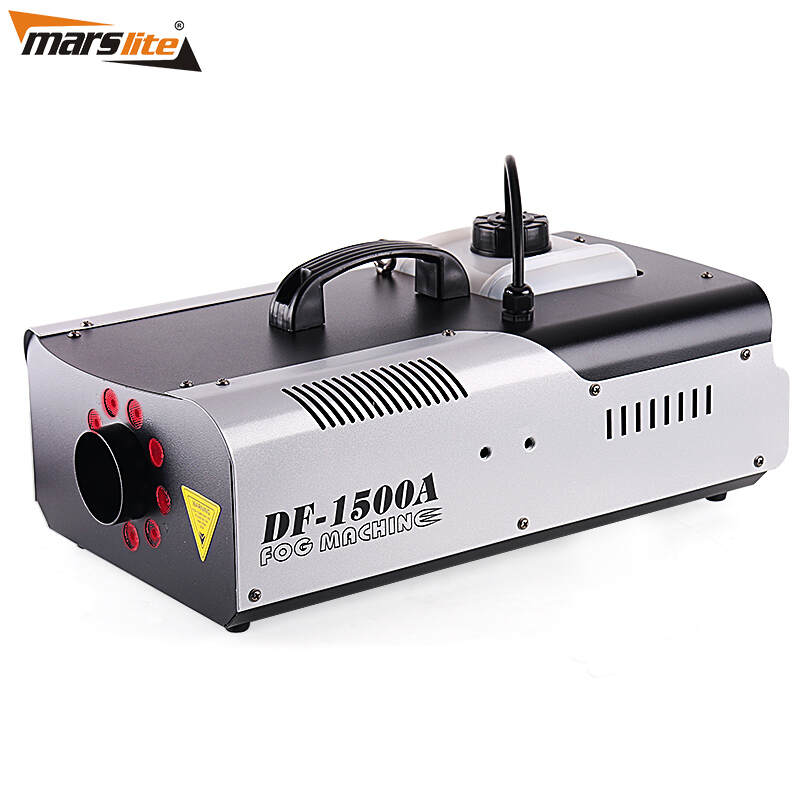

Smoke machine 1500W DJ Stage Effect Disco Lighting stage fog machine

Technical Parameter

Power: 1500W
Voltage: AC 220V 50Hz
Warm-up time: 3 minutes
Capacity of tank : 2.5liters
Fluid consumption(100% output):20000Cuft/min
Control mode: DMX , wired and wireless remote control
Smoke distance: 4-5 meters
Weight: 5.4kgs
Size : 47*25*20 cm

In order to add atmosphere to the performances and enhance the performance effect, a wide variety of stage effect equipment is generally equipped in the stage, karaoke hall and other literary and artistic venues, such as bubble machines, snow machines, salute machines, air columns, etc. Of course, smoke The machine is also one of the commonly used stage effect equipment. The more times it is used, the more frequent failures will occur. We briefly introduce the precautions when using the fog machine, as well as the maintenance methods for some common faults.

Before the performance starts, if it is confirmed that the fog machine is to be used, it should be filled with special e-liquid in advance, and before the performance starts, the fog machine must be powered on for preheating. The length of the preheating time should be standardized at more than 8 minutes, and the spray should not be turned on if the preheating time is insufficient. After the preheating is satisfied, the actual start-up control of the instant "spray" is controlled by a wireless remote control receiving controller externally inserted on the hood and a wireless remote control in the operator's hand.

Does not spray after startup

stage equipment rental company will first open the main frame and then turn it on to measure whether the AC 220V power supply on the heater terminal is normal. If there is no such voltage, in most cases, the thermal fuse FU (215℃) is damaged. In general, the heater itself is not damaged much. The thermal fuse is more commonly damaged due to overheating, and the fault can be eliminated after replacement.

In addition, when the heater part is completely normal, if the fog machine still cannot spray smoke, it means that the controller circuit part of the external plug of the host may be faulty. First, measure whether the three-terminal voltage regulator block IC3 in the controller has 12V, 5V DC voltage at the input "people, output" pins. There is 12V voltage but no 5V voltage, which means that IC3 is damaged. If there is no 12V5V voltage, it is necessary to check whether the step-down capacitor C6, rectifier filter D2-D5, C1-C3, R7 and the pre-stage voltage regulator DW are damaged or not.

If there is no abnormality in the working power part of the controller, the wireless transmitter remote control should be used to cooperate with the inspection. Press the "start" button on the remote control, then use a multimeter to measure the DC voltage of IC1 (17) pin should have "high level" (about 2:5V) output; at the same time, the voltage of the C pole of the drive tube Q1 should be synchronized down to around 1V. If the above is normal, the fault is basically one of IC2 and T1, and most likely T1 is damaged.

Small amount of spray

It can be sprayed but the mist volume is small, indicating that the heater and the controller are basically normal. The reasons may be short warm-up time, clogging of the nozzle, lack of e-liquid and other factors. In addition, Xi'an stage equipment rental company reminded us that whether the oil pump is abnormal is the focus of inspection, because the oil pump is very small, if the continuous working time is too long, it will easily cause the motor in the pump to overheat and damage the windings, and it will be accompanied by loud noise. Generally, the DC resistance value of the oil pump motor that is completely normal after the actual measurement should be around 1.85kn, and the difference should be replaced.​​​​

FAQ

Q1.What is your delivery time?

A:3-5days for sample or small batch orders, 15-30days for mass production

Q2.What is the payment method?

A:T/T,Paypal,WU,Ali Pay.

Q3.How do you guarantee the quality of your products?

A:All Marslite products 100% full test 24hours before goods delivery.

Q4.Are you a factory or a trading company?

A:Manufacturer, with about 100 person in factory.

Q5.Where is your factory?

A:No 195, sandong Road,Huadu Distric ,Guangzhou City, China, very near the Guangzhou Baiyun Airport.

Q6.How long is the product warranty?

A:2 Years Warranty

Q7.Does your packaging ensure product safety?

A:Marslite will do Drop testing for package to make sure all products is well packed.

Q8.How is your after-sales service?

A:We will give you spare parts and technical support to help you fix the light.
