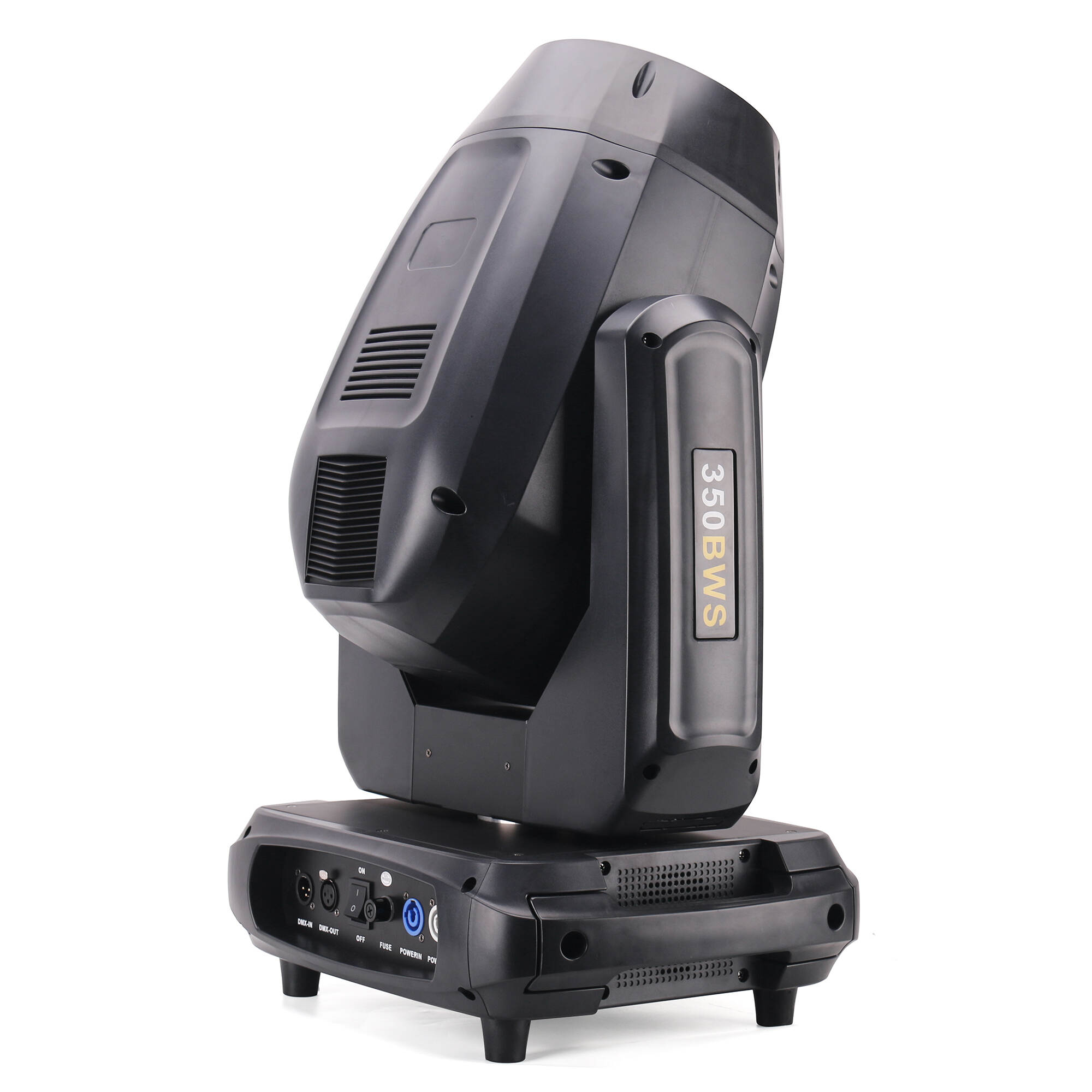

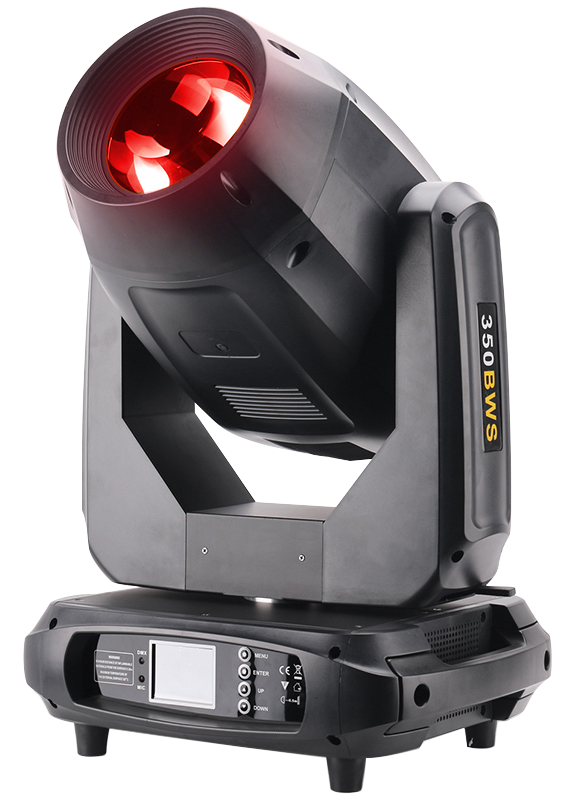

350w 3in1 Moving Head Beam 17r Beam+Spot+Wash Moving Head Stage Light Sharpy Beam Light

Name: Disco Moving Head Wash Stage Dj Lights
Brand: MARS STAGE LIGHTING&AUDIO EQUIPMENT CO.,LTD
Availability: InStock

Inquiry Basket

OEM：

Available

Sample：

Available

Payment：

Other

Place of Origin：

China

Supply Ability：

9999 piece per Month

Product Details

Disco Moving Head Wash Stage Dj Lights

moving head dj lights

moving head stage light

Specification

Lamp power：350W；

Power consumption：500W；

Power supply：High efficiency is upon switch power supply；

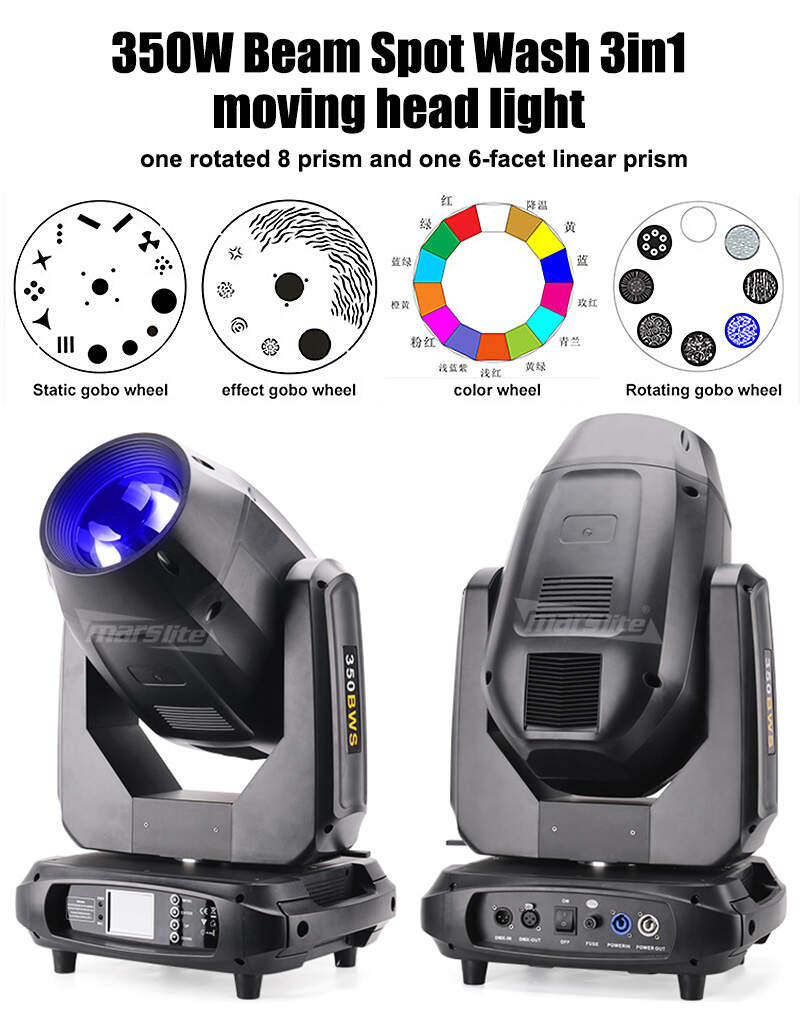

Color wheel：one color wheel，14 colors +open；

Gobo wheel：one fixed gobo wheel, 13 gobos; one rotation gobo wheel, 8 rotated gobos；one

effect wheel, 5 effect gobos

Prism wheel：one rotated 8 prism and one 6-facet linear prism；

Dimmer：0-100% electric dimmer； Bigger adjustable range of beam angle；

Strobe：Mechanical strobe and can adjust speed，support Macro function of strobe；

Channel: 24/17CH

Lens optical system，electrical focus，beam angle: 3.8°-56° linear adjustment；Page 4

Use photo-electricity reset system, self-correction；

Pan 540°，8Bit/16Bit；

Tilt 270°， 8Bit/16Bit；

Over temperature protection；

Control mode：DMX512/Master-slave/auto-run；

P grade：IP20；

The difference between beam lamp and moving head lamp

Working principle

Beam lamp

Working principle: it is realized by using the light source of the short focal length focusing principle and the lens focusing effect. At present, it is the most popular for major performances. It is mainly suitable for popular occasions, such as singing and dancing, and variety shows to mobilize the atmosphere.

Moving head lamp

Working principle: 220V - Rectifier - trigger - bulb - temperature controller - zero line

The 220V power supply comes to the rectifier first, and is output to the trigger B end through the rectifier. The other two terminals of the trigger are connected to both ends of the bulb, and then output to the zero line through the temperature controller.

The trigger only works when the bulb is lit, mainly by giving a high pressure to both ends of the bulb to make the gas inside light up due to electrical changes. When the light bulb is on, the internal trigger will not work, but it is equivalent to connecting the rectifier. (the principle is the same as that of the old fluorescent lamp). The function of rectifier is to connect with the bulb to divide the voltage after the bulb lights up.

Occasion of use

The beam lamp is a metal halide lamp, and the pattern lamp is a discharge bulb. The metal halide lamp used in the beam lamp has a small beam angle and higher light efficiency utilization, so even if the power is not very high, it can get a very bright light column.

Because the head moving lamp irradiates conical light, the light spreading area is much larger than the beam lamp.

Beam lights are used in more occasions for explosive scenes, such as the close-up of the opening show and vigorous singing and dancing, combined with strobe, to make a passionate visual impact effect;

Moving head lamp is more about the art of showing tenderness and intellectuality, enjoying the aftertaste in the soft sound slow dance. Through the collocation of different colors and patterns, it forms a soft and gorgeous scene and creates a warm and romantic atmosphere.

If you are in a bar with a height of only three to five meters, it is a wise choice to choose a shake head lamp. Beams and patterns can appear to form a good atmosphere, which will not make guests uncomfortable, but also bring discomfort to them.

On the contrary, in a very high studio, the wide beam angle of the head moving lamp will make the light column very dark, which can not achieve the required lighting effect. Therefore, generally, in this case, beam lamps should be used for this occasion, unless there are other special requirements for the lighting effect of the venue.

Therefore, when selecting beam lamps and head moving lamps, the distance used and the required effect should be determined according to the actual site.

Use difference

The light of beam lamp can shoot far, which can be used according to the needs of stage and program; The head moving lamp is usually used to render the performance lights close to the stage.

Generally, the effect of using a moving head lamp at a distance of less than 5m will be better. If the distance is too large, if it is more than 12M, using a beam lamp will be better.

It can be clearly and truly felt when the effect performance test is carried out in the production workshop. When the beam lamp is illuminated at a close distance, it is easy to form a feeling of dizziness because the light is too bright. The moving head lamp with discharge bulb will not have this feeling.

Moving head lamps can be used within 12 meters, which can produce beams and patterns to form a good atmosphere, and will not make guests uncomfortable and bring discomfort to them. On the contrary, in a very high studio, the wide beam angle of the head moving lamp makes the light column very dark, and the effect of light cannot be achieved. In this case, beam lamps should be used. Therefore, the selection of beam lamps and head moving lamps should also be based on the actual distance and effect.

However, in terms of market demand, no matter what kind of occasions and scene applications, general consumers will prefer to choose beam lamps. Because the beam lamp actually has the function of moving head lamp in function. Compared with the headlamp, the beam lamp will have more complete functions and a wider range of use. If it is not for the special needs of the site, it is generally recommended that you choose to buy beam lamps, unless the site is too small to have the conditions to use beam lamps.
