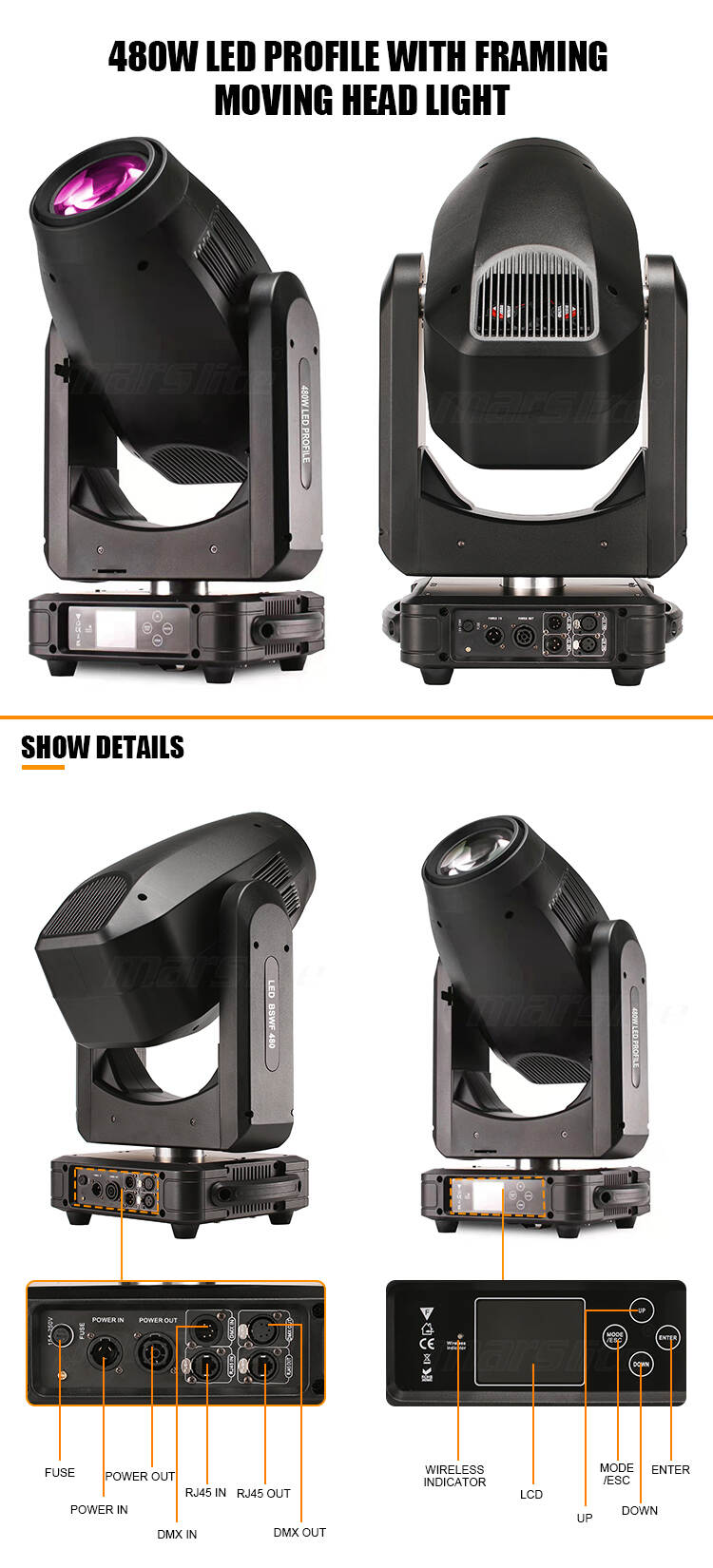

480W LED Moving Head Profile Light

Specification

OPTICS

Source: 480W white LED engine

CT:6500k

Life: ＞20,000H

Standard mode Ra>70

High CRI mode Ra>90

POWER SUPPLY

AC100-240V 50/60Hz

Switch power supply

Input power: 550w

PF≧0.98

MOVEMENT

Pan movement: 540°/630° optional (16 bit)

Tilt movement: 270° (16 bit )

Advanced motion system: auto repositioning, fast, quiet and smooth

COLORS

CMY infinite color mixing

CTO linear

7 dichroic filters + open, bidirectional color rainbow can be created,

even and smooth CMY+CTO color change system

GOBOS

1 Rotating gobo wheels:

7 interchangeable + open ,with shaking effect and gobo wheel can be positioned

1 fixed gobo wheel:

8 interchangeable+open,with gobo shaking effect

FEATURES

DMX channels:34/54 CH

prism:1 bidirectional 5-facet rotating prism , prism can be positioned

Focus： linear focus

5%-100% electronic Iris

Shutter: electronic, variable from 1-25Hz or random

Dimming: 0-100% linear dimming

Frost: heavy frost

Zoom: 4.5°- 55°linear zoom

Patented framing system: 1 set of all directional framing systemwith 8 framing blade precise position can be cutting 90° rotation,full field travelwith the ability to create differentshapes.

Animation wheel: special dynamic flame or water effect

Flicker free management

With quiet mode and High-power mode

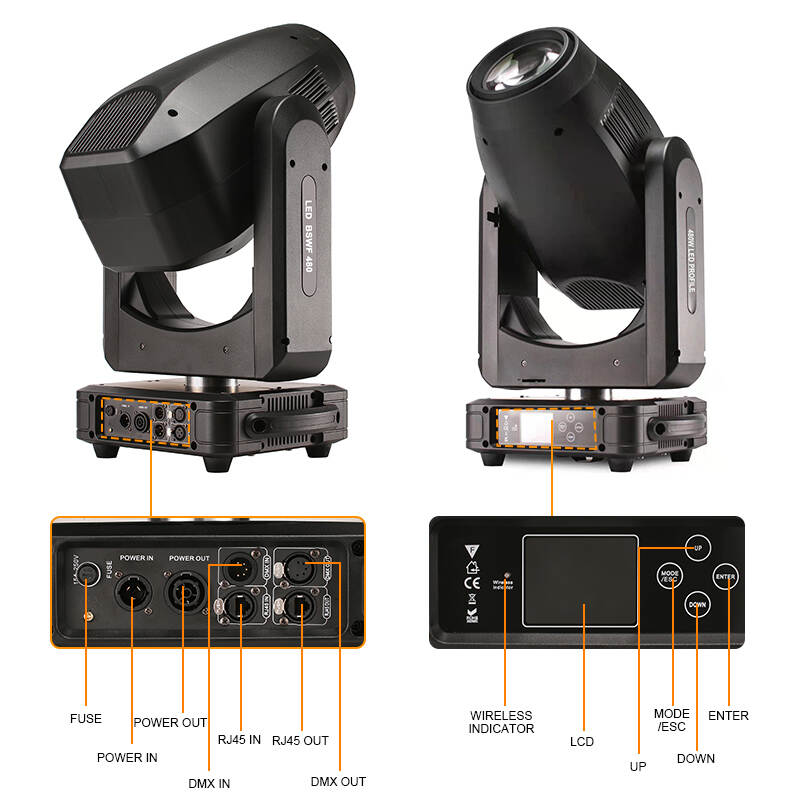

DISPLAY

15 second standby auto lock

Pan/ Tilt disengage (hold MENU and ENTER button)

SOFTWARE

Run time of LED engine and fixture

OTHER SPEC

Optional ArtNET control

RDM compatible

intelligent fan noise control,intelligent energy-saving

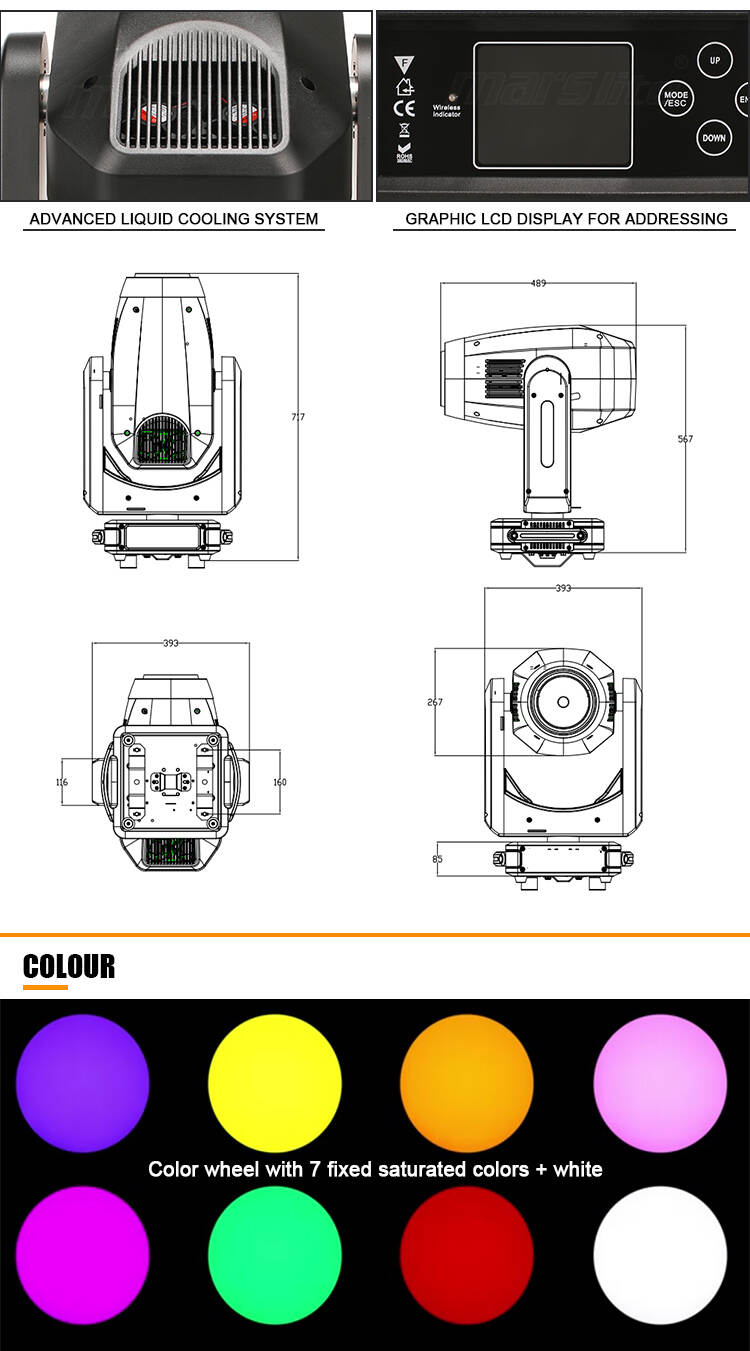

DIMENSIONS AND WEIGHT

body size :370 X283 X713mm

Packing Dimension in fly case 2in1: 83X37X45 MM

On the importance of LED shaking head light in the scene of the stage

Key light of LED shake head lamp

Led stage light in a scene, its main light source led stage light is usually called key light.

The key light of LED stage lamp is not necessarily the light source of LED shaking head lamp, but it must be the main led stage lamp light source for lighting. However, the key light of LED shaking head lamp may not be fixed in a place like a point source.

The LED stage light point light source is usually placed on three quarters of the LED stage light position (turn 45 degrees from the front of the object, and turn 45 degrees upward from the centerline. The position of the LED shake head light is often set to use the LED stage light). According to the needs of the specific scene of the stage light, the LED dance table light can also come from below or behind the object, or any other position.

The key light of LED shaking head lamp is usually the LED stage light source placed first, and the LED shaking head lamp is used to create a preliminary led stage light lighting effect in the scene.

Although the initial placement of LED stage lights provides a good way to illuminate objects, the results of some led shake head lights are indeed monotonous and boring led stage light images. The shadow of LED stage light is usually very rough and obvious. Similarly, the LED stage light scene always looks too dark, because there is no natural led stage light ambient light to highlight the shadow area.

Led stage lights in this case are very useful in specific scenes, such as night scenes, but led stage lights are a little inappropriate for most pictures.

The actual light source of LED stage lamp is the lighting source of LED shaking head lamp that actually appears in the scene of LED stage lamp.

Led table lamps, car headlights, lightning and field burning flames are all key lights of potential light sources.

After setting LED lights for the LED stage light scene, there are some other led stage light factors that need to be examined; After considering the above problems, it is time to create LED lights for an LED stage light scene.

Although the number and type of key lights of the light source and their individual properties will vary according to the LED stage light scene.

However, led stage lights have three basic types of light source key light: the key light of LED head shaking light, supplementary light and background light, which work together to coordinate the operation of LED stage lights.

We are an industry-leading professional stage entertainment lighting high-tech enterprise committed to stage lighting research and development, production, sales and service, with a complete and scientific quality management system. If you have any questions, please contact us!

FAQ

Q1.What is your delivery time?

A:3-5days for sample or small batch orders, 15-30days for mass production

Q2.What is the payment method?

A:T/T,Paypal,WU,Ali Pay.

Q3.How do you guarantee the quality of your products?

A:All Marslite products 100% full test 24hours before goods delivery.

Q4.Are you a factory or a trading company?

A:Manufacturer, with about 100 person in factory.

Q5.Where is your factory?

A:No 195, sandong Road,Huadu Distric ,Guangzhou City, China, very near the Guangzhou Baiyun Airport.

Q6.How long is the product warranty?

A:2 Years Warranty

Q7.Does your packaging ensure product safety?

A:Marslite will do Drop testing for package to make sure all products is well packed.

Q8.How is your after-sales service?

A:We will give you spare parts and technical support to help you fix the light.
